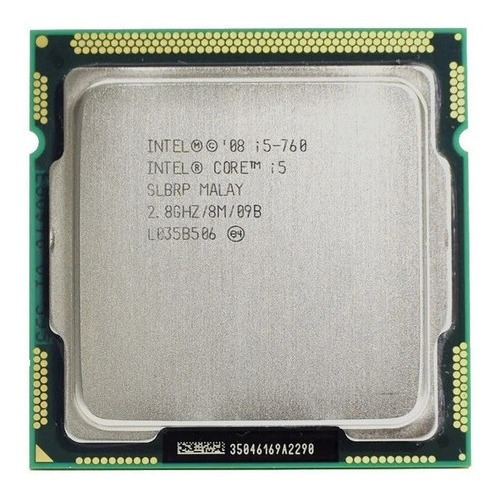

Cpu intel [s1156] pentium core i5-760 3.3 ghz 4c 4
Ref. 798838

Status: Launched
Launch Date: Q3`10
Processor Number: i5-760
of Cores: 4
of Threads: 4
Clock Speed: 2.8 GHz
Max Turbo Frequency: 3.33 GHz
Intel Smart Cache: 8 MB
Bus/Core Ratio: 21
DMI: 2.5 GT/s
Instruction Set: 64-bit
Instruction Set Extensions: SSE4.2
Embedded Options Available: No
Supplemental SKU: No
Lithography: 45 nm
Max TDP: 95 W
VID Voltage Range: 6500V-1.400V

Memory Specifications
Max Memory Size
(dependent on memory type): 16 GB
Memory Types: DDR3-1066/1333
of Memory Channels: 2
Max Memory Bandwidth: 21 GB/s
Physical Address Extensions: 36-bit
ECC Memory Supported: No

Graphics Specifications
Integrated Graphics: No

Expansion Options
PCI Express Revision: 2.0
PCI Express Configurations: 1x16, 2x8
of PCI Express Ports: 1

Package Specifications
Max CPU Configuration: 1
TCASE: 72.7°C
Package Size: 37.5mm x 37.5mm
Processing Die Size: 296 mm2
of Processing Die Transistors: 774 million
Sockets Supported: LGA1156
Halogen Free Options Available: Yes

Advanced Technologies
Intel Turbo Boost Technology: Yes
Intel Hyper-Threading Technology: No
Intel Virtualization Technology (VT-x): Yes
Intel Virtualization Technology for Directed I/O (VT-d): No
Intel Trusted Execution Technology: No
AES New Instructions: No
Intel 64: Yes
Idle States: Yes
Enhanced Intel Speedstep Technology: Yes
Intel Demand Based Switching: No
Thermal Monitoring Technologies: No
Execute Disable Bit: Yes
