Specifications
-Essentials
Status Launched
Launch Date Q3'15

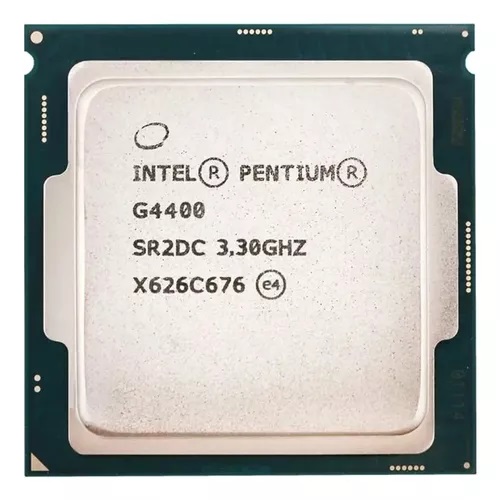

Processor Number G4400
Cache 3 MB SmartCache
Bus Speed 8 GT/s DMI3
Instruction Set 64-bit
Instruction Set Extensions SSE4.1/4.2
Embedded Options Available Yes
Lithography 14 nm
Scalability 1S Only
Thermal Solution Specification PCG 2015C (65W)
Recommended Customer Price .00
Conflict Free Yes
Datasheet Link
-Performance
# of Cores 2
# of Threads 2
Processor Base Frequency 3.3 GHz
TDP 54 W
-Memory Specifications
Max Memory Size (dependent on memory type) 64 GB
Memory Types DDR4-1866/2133, DDR3L-1333/1600 @ 1.35V
Max # of Memory Channels 2
Max Memory Bandwidth 34.1 GB/s
ECC Memory Supported ‡ Yes
-Graphics Specifications
Processor Graphics ‡ Intel® HD Graphics 510
Graphics Base Frequency 350 MHz
Graphics Max Dynamic Frequency 1 GHz
Graphics Video Max Memory 64 GB
Graphics Output eDP/DP/HDMI/DVI
4K Support Yes, at 60Hz
Max Resolution (Intel® WiDi)‡ 1080p
Max Resolution (HDMI 1.4)‡ 4096x2304@24Hz
Max Resolution (DP)‡ 4096x2304@60Hz
Max Resolution (eDP - Integrated Flat Panel)‡ 4096x2304@60Hz
Max Resolution (VGA)‡ N/A
DirectX* Support 12
OpenGL* Support 4.4
Intel® Quick Sync Video Yes
Intel® InTru™ 3D Technology Yes
Intel® Insider™ Yes
Intel® Wireless Display Yes
Intel® Clear Video HD Technology Yes
Intel® Clear Video Technology Yes
# of Displays Supported ‡ 3
Device ID 0x1902
-Expansion Options
PCI Express Revision 3.0
PCI Express Configurations ‡ Up to 1x16, 2x8, 1x8+2x4
Max # of PCI Express Lanes 16
-Package Specifications
Max CPU Configuration 1
Package Size 37.5mm x 37.5mm
Graphics and IMC Lithography 14 nm
Sockets Supported FCLGA1151
Low Halogen Options Available See MDDS
-Advanced Technologies
Intel® Turbo Boost Technology ‡ No
Intel® vPro Technology ‡ No
Intel® Hyper-Threading Technology ‡ No
Intel® Virtualization Technology (VT-x) ‡ Yes
Intel® Virtualization Technology for Directed I/O (VT-d) ‡ Yes
Intel® VT-x with Extended Page Tables (EPT) ‡ Yes
Intel® TSX-NI No
Intel® 64 ‡ Yes
Idle States Yes
Enhanced Intel SpeedStep® Technology Yes
Thermal Monitoring Technologies Yes
Intel® Identity Protection Technology ‡ Yes
Intel® Stable Image Platform Program (SIPP) No
Intel® Small Business Advantage No
-Intel® Data Protection Technology
Intel® AES New Instructions Yes
Secure Key Yes
Intel® Software Guard Extensions (Intel® SGX) Yes
Intel® Memory Protection Extensions (Intel® MPX) No
-Intel® Platform Protection Technology
OS Guard No
Trusted Execution Technology ‡ No
Execute Disable Bit ‡ Yes
